Classic Bike Restoration Project - Disassembly

Discussion in 'Northern Thailand - General Discussion Forum' started by ianyonok, Aug 25, 2016.

  1. ianyonok

    ianyonok Ol'Timer

    I have now stripped the engine on the '65 BSA C15 wreck I bought. Some ugly sights on the way...

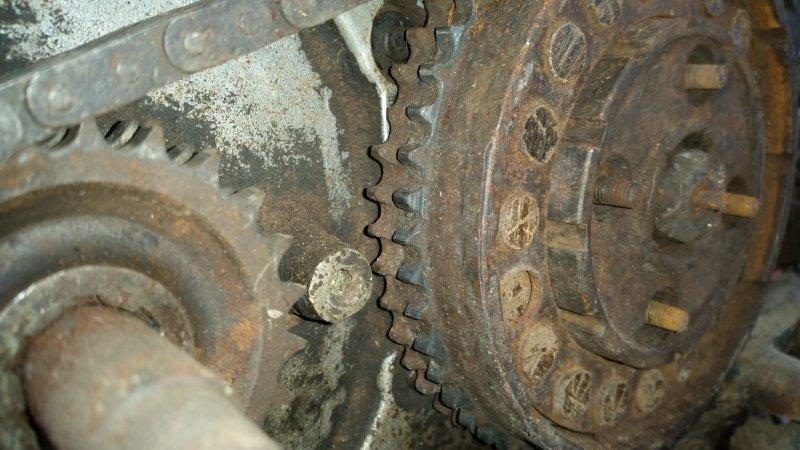

    Primary cover off and I found the primary chain rusted and seized solid. Made a clutch hub puller on the lathe and with a 3 leg puller on the engine sprocket, it came off after some swearing.
    2015-08-20 10.11.16.jpg

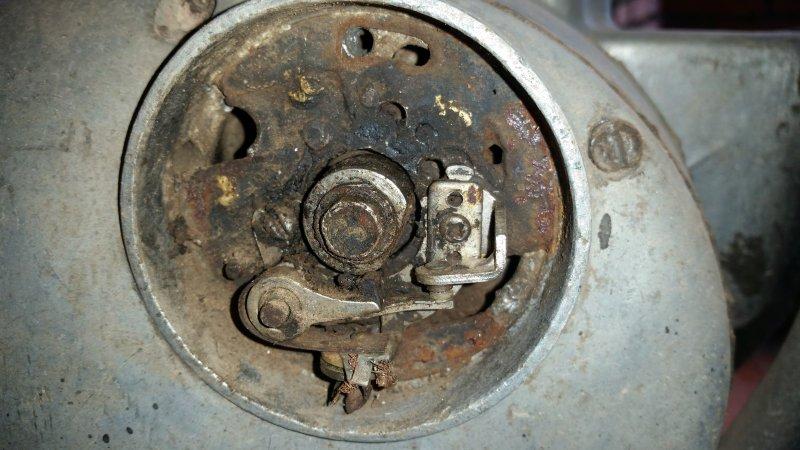

    The contact breaker and backplate may need replacing
    ' 2015-08-20 10.15.39.jpg

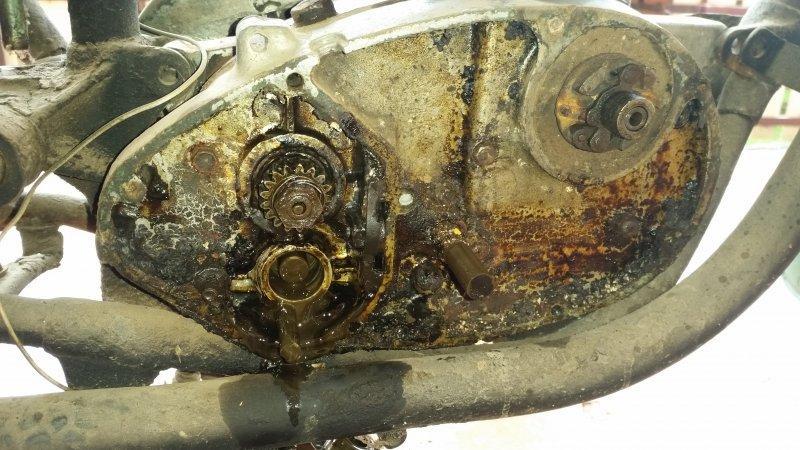

    It looked pretty nasty under the outer timing cover too, but will all clean up. May be able to restore the auto advance unit.
    2015-08-20 13.20.04.jpg

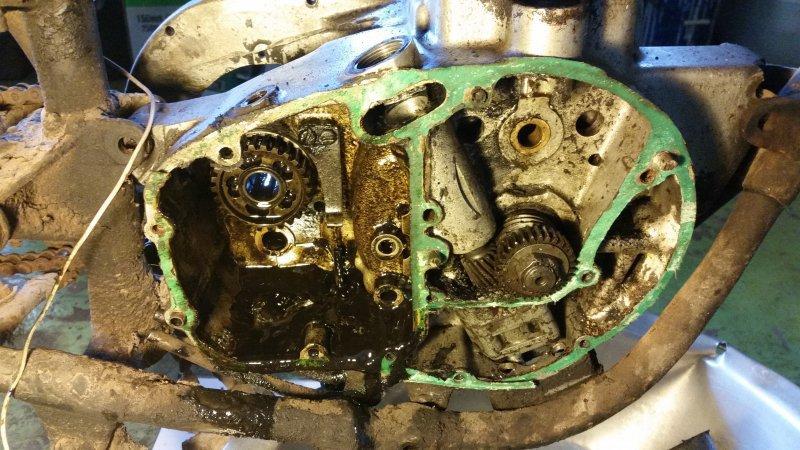

    Under the inner cover, it was even uglier....... although the gear cluster all seems good. A sort of brown blackcurrant jam was still in the gearbox which had protected the parts from corrosion......
    2015-09-27 11.41.08.jpg

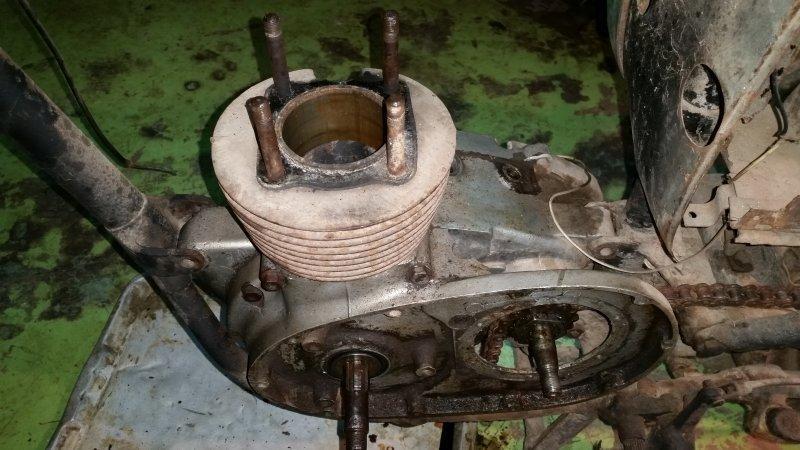

    Surprisingly, the engine was not seized, but the bore was well scored.
    2015-09-03 16.55.44.jpg

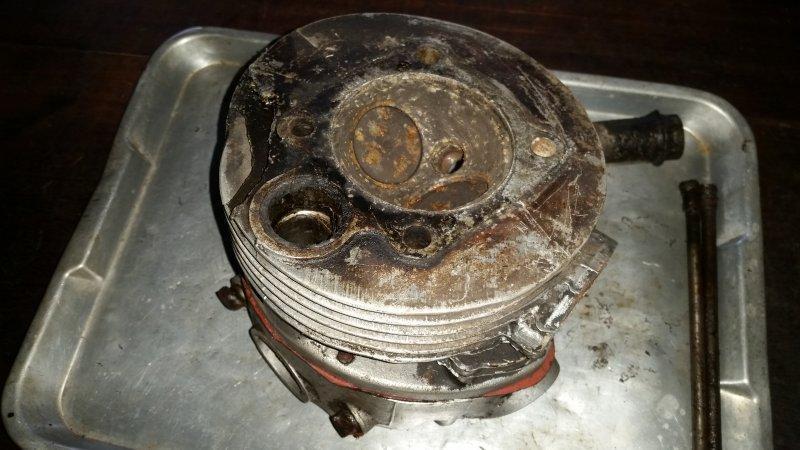

    Two broken lower fins on the cylinder head, several stripped threads.
    2015-09-03 17.03.41.jpg

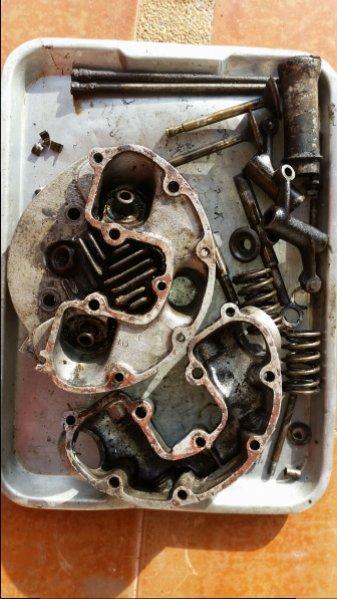

    The rocker box is OK, except that Japanese rocker box caps had been forced into the original different threaded holes. Pushrods are scrap (welded up non-original things). Pushrod tube is in poor shape and the sparkplug hole in the head has had a home made steel insert put in and the internal thread is way off round.
    2015-09-06 16.48.00.jpg
    The engine was loose in the frame anyway, wrong bolts, no bolts and a seriously broken crankcase mount bracket at the front.
    The crankcase halves split easily enough. The drive side crank main roller will need replacing and the timing side main bush too.
    The piston is Italian and not too bad but the big end is worn out with too much play. Note the welded up gearbox sprocket. The sprocket was worn out and someone had cut the old teeth off, then welded a new ring of teeth onto the original splined centre.

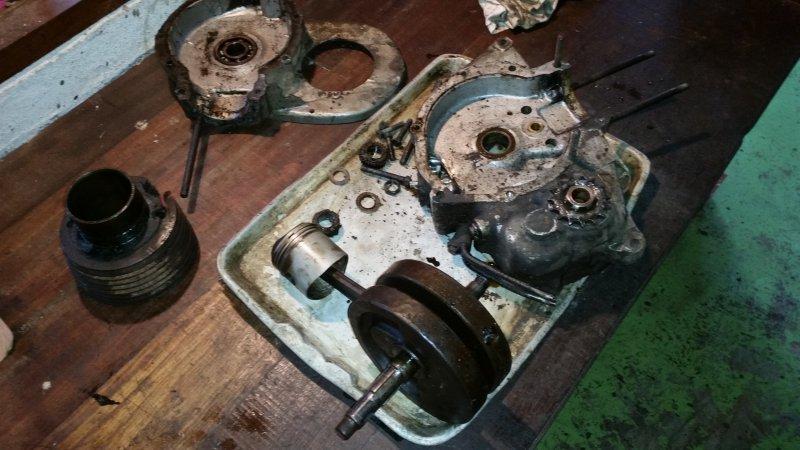

    2015-09-30 16.43.01.jpg

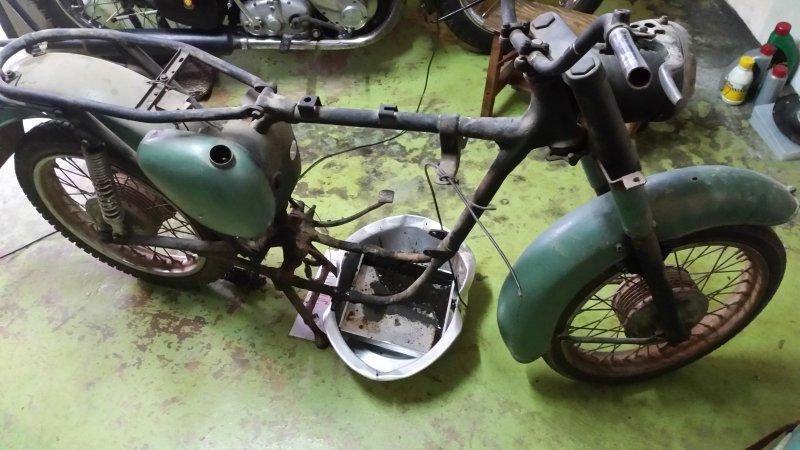

    That's the engine out for refurbish and/or replacement of parts and re-assembly.
    2015-09-30 16.42.22.jpg

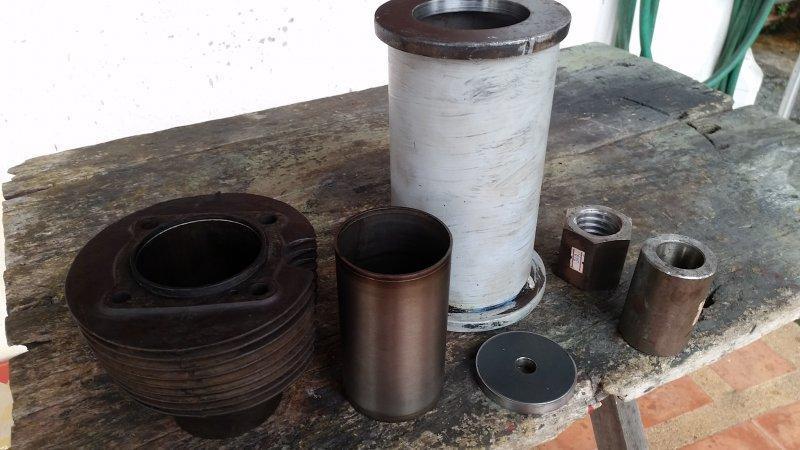

    I made some pushers and holder to get the sleeve pressed out of the barrel at a local car shop.
    2016-07-21 16.40.53.jpg

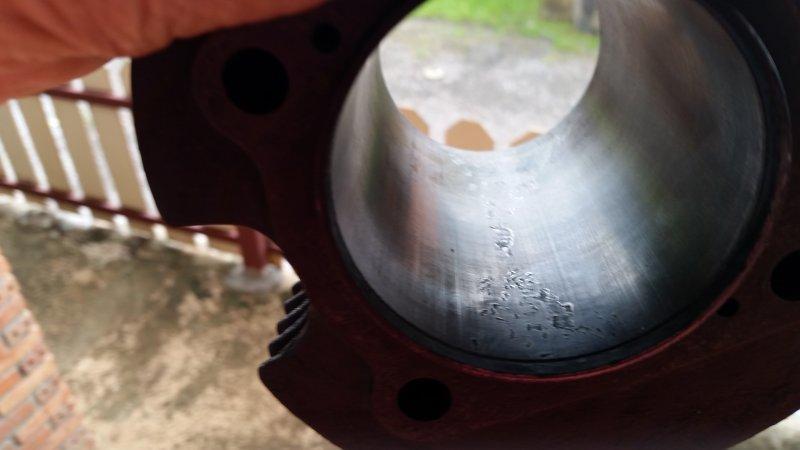

    You could read the history.... the barrel had been overbored a few times and was at about maximum and then there had been a catastrophic failure (probably a home made gudgeon pin circlip had come loose). The scoring on the original bore is clear. Then a sleeve had been made and fitted, so the bore was back to about original 67mm diameter.
    2016-07-21 16.41.14.jpg

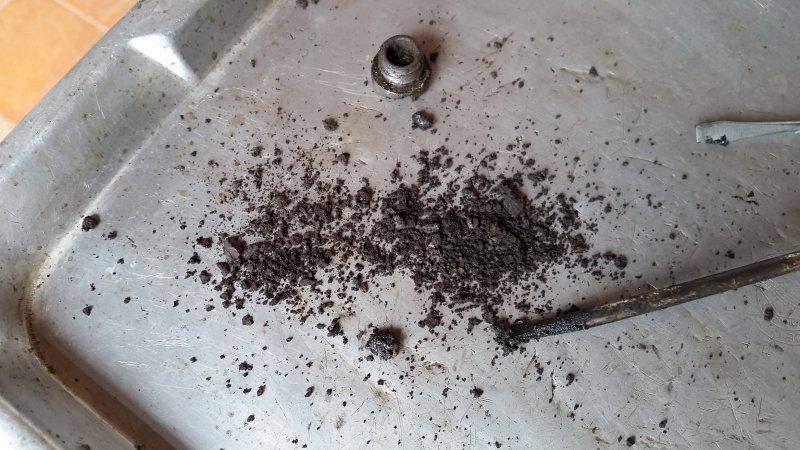

    The crankshaft sludge trap was blocked solid.
    2016-07-16 14.38.49.jpg
    I made some press plates to split the crank, back to the car shop again.
    [​IMG]

    Some of the rollers were home made and one looked like a piece of stainless steel rod, undersize by 0.5mm. The conrod bush and the crankpin also had some wear.
    [​IMG]

    So now, begins the nicer part. working out what parts needs replacing and what needs restoration work. It will be a fun project.


    Attached Files:

    scotty007 and Oddvar like this.
  2. Loading...


  3. ianyonok

    ianyonok Ol'Timer

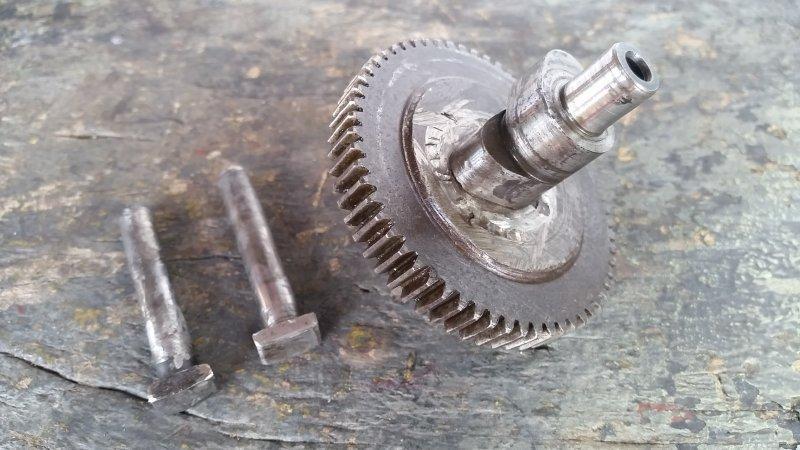

    One more shot.... at some stage, one of the home (and poorly) made tappets twisted sideways, broke a piece of the crankcase off, where the tappets run and twisted into the side face on the camshaft wheel. The lobes on the camshaft are also in poor condition.
