Dyna (cafe) Sport

Discussion in 'General Discussion / News / Information' started by Hoghead, Nov 26, 2017.

  1. Hoghead

    Hoghead Ol'Timer

    Joined:
    Feb 5, 2007
    Messages:
    628
    Likes Received:
    7
    Trophy Points:
    18
    Ratings:
    +7 / 0 / -0
    #1 Hoghead, Nov 26, 2017
    Last edited by a moderator: Nov 28, 2017
    Designed and built in Chiangmai by myself with help from Korn

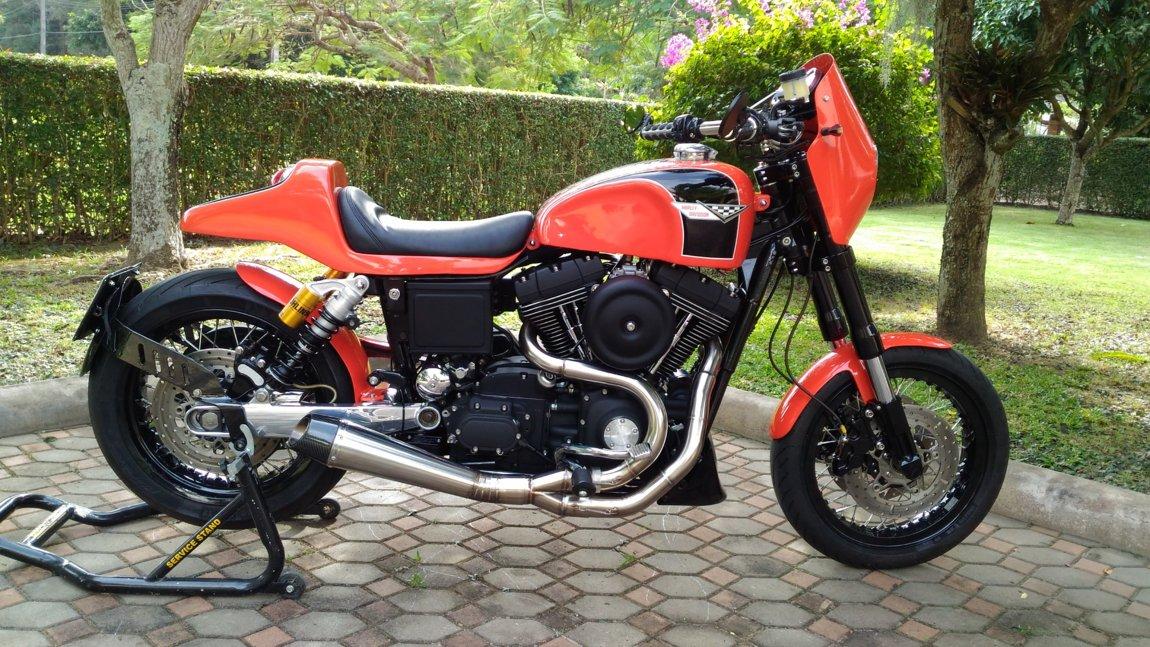

    P_20171126_134503.

    264 Kg. wet - 38 Kg. lighter than stock

    1557cc producing 123 rear wheel HP with 107 ft. Lbs torque.

    True Track chassis stabilizer hidden under a custom chin spoiler

    17” lightweight, tubeless, aluminum rims on stainless spokes

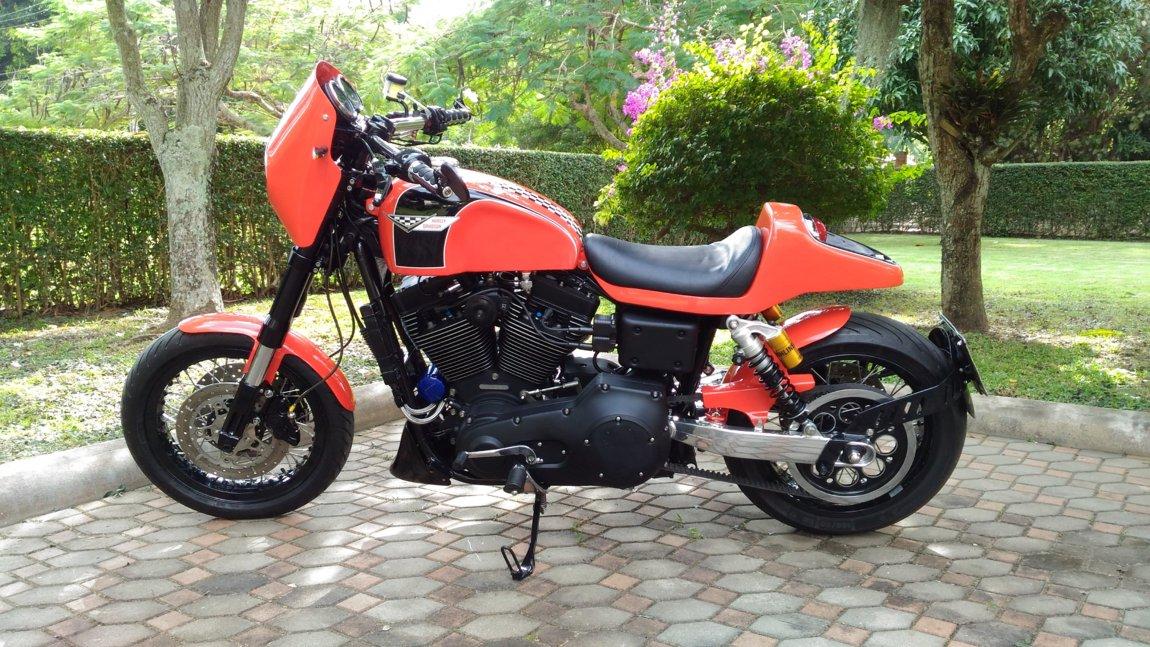

    P_20171126_135651.

    Metmachex aluminium swingarm

    Ohlins fully adjustable shocks

    Ceriani 45mm inverted cartridge fork

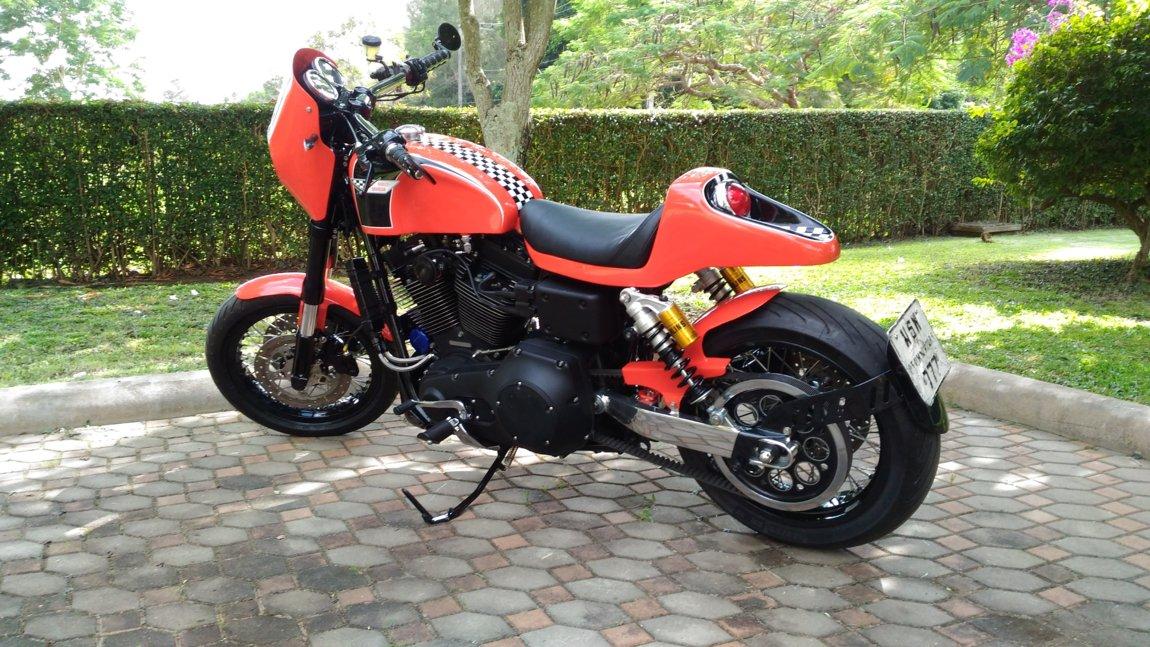

    P_20171126_135737.

    Performance Machine 4 piston axial callipers on EBC floating rotors

    Brembo RCS 19 adjustable ratio, radial master cylinder

    Fat Bob bars on 90mm risers

    Fibreglass 1970 Superglide boat tail, modified to a single seat design.

    Balance of bodywork is hand beaten aluminium

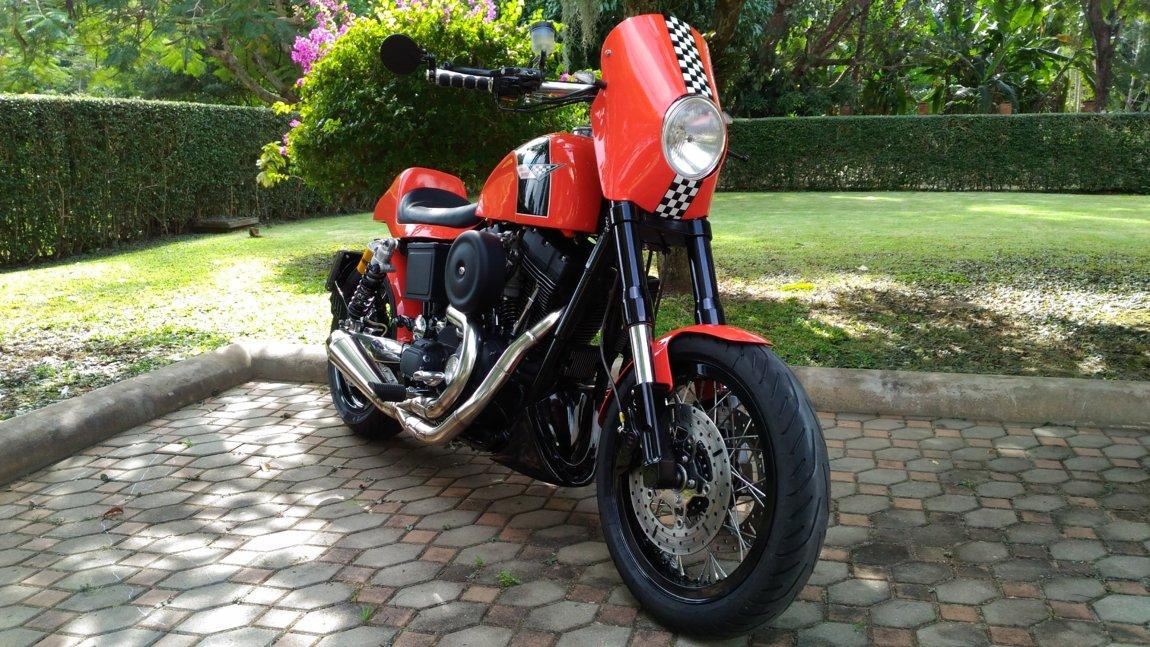

    P_20171126_135153.
    Almost there, and will be able to drop a little more weight and better looks with the aluminium pegs.

    Still unsure if I like it with or without the headlight cowl.........

    • Like Like x 2
  2. Oddvar

    Oddvar Ol'Timer

    Joined:
    Mar 18, 2013
    Messages:
    285
    Likes Received:
    80
    Trophy Points:
    28
    Ratings:
    +80 / 0 / -0
    Not a HD fan but this is a good looking bike.

  3. canthai

    canthai Ol'Timer

    Joined:
    Apr 8, 2015
    Messages:
    174
    Likes Received:
    38
    Trophy Points:
    28
    Ratings:
    +38 / 0 / -0
  4. Hoghead

    Hoghead Ol'Timer

    Joined:
    Feb 5, 2007
    Messages:
    628
    Likes Received:
    7
    Trophy Points:
    18
    Ratings:
    +7 / 0 / -0
    #4 Hoghead, Nov 26, 2017
    Last edited by a moderator: Nov 28, 2017

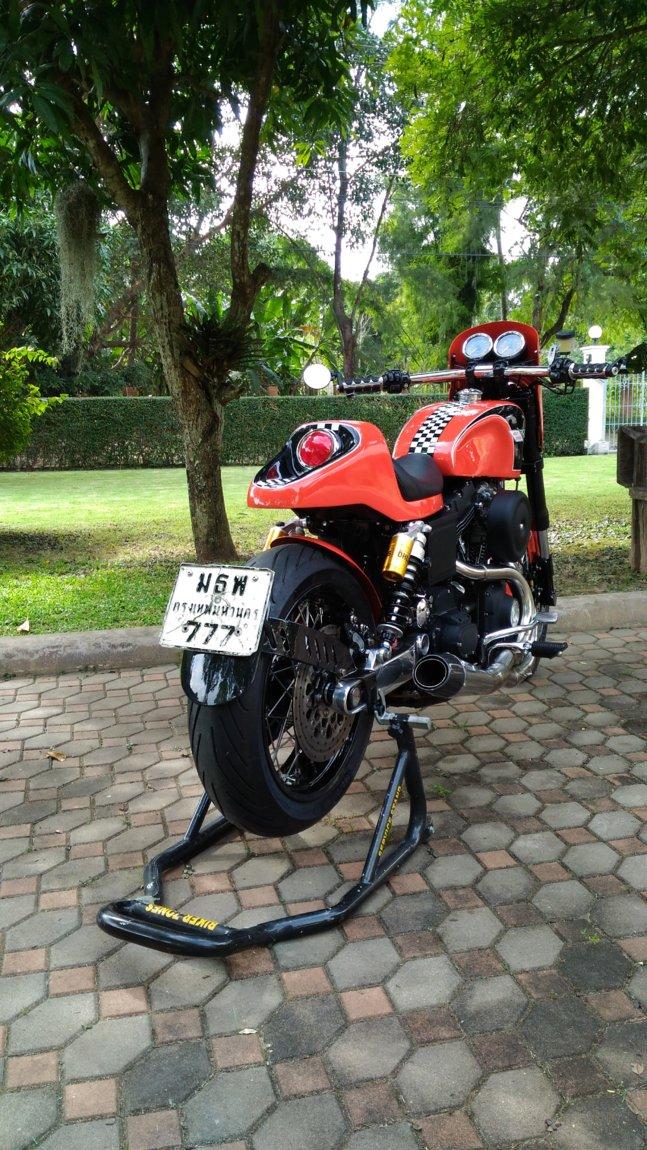

    Excuse the trashed plate as I am awaiting a new smaller "copy" plate

    P_20171126_134537.

  5. GTR-Admin

    GTR-Admin Ben Kemp
    Staff Member

    Joined:
    Mar 22, 2016
    Messages:
    136
    Likes Received:
    60
    Trophy Points:
    28
    Gender:
    Male
    Ratings:
    +60 / 0 / -0
    A thing of beauty, and a joy to behold. Truly, a melody in metal... my guess is that when you start it up, everyone within 200 metres looks around! :cool: I've never owned or ridden a Harley Davidson, but there's a primal note to a finely tuned HD engine that cannot be ignored... A beautiful piece of workmanship - I can see why the Versys got moved along.

    • Like Like x 1
  6. Hoghead

    Hoghead Ol'Timer

    Joined:
    Feb 5, 2007
    Messages:
    628
    Likes Received:
    7
    Trophy Points:
    18
    Ratings:
    +7 / 0 / -0
    I
    It is a wee bit loud......

    • Like Like x 1
  7. DavidFL

    DavidFL Administrator
    Staff Member

    Joined:
    Jan 16, 2003
    Messages:
    10,714
    Likes Received:
    736
    Trophy Points:
    113
    Gender:
    Male
    Ratings:
    +736 / 0 / -0
    Well done Robert.
