Yamaha R3 Throttle Tube Swap

Discussion in 'Technical & Motorcycle Services' started by JAFO, Dec 25, 2018.

  1. JAFO

    JAFO Member

    Joined:
    Dec 19, 2018
    Messages:
    6
    Likes Received:
    5
    Trophy Points:
    3
    Gender:
    Male
    Ratings:
    +5 / 0 / -0
    If you happen to own an R3 you will notice that the throw (Spin) of the factory throttle tube is actually quite long. In fact on long rides you constantly need to rotate your hand on the throttle because at higher speed the wrist angle is very uncomfortable.

    On my last trip to the states I brought back the Yamaha R6 throttle tube. I had heard from a few of my friends that the swap is great. After installing it and taking the moto for a spin the difference is quite significant. Throttle response is much quicker off idle and the throw to WOT is much shorter leaving your wrist at a very comfortable position.

    zB8eqaQ.

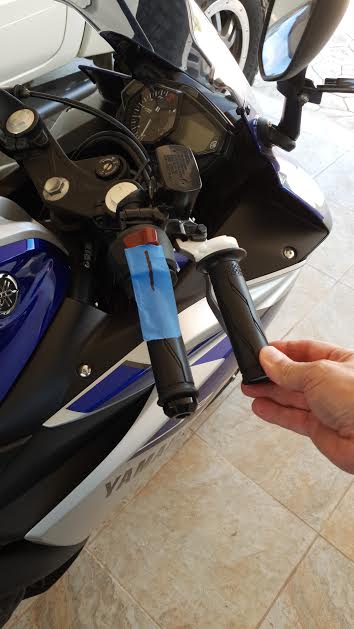

    (Factory throttle tube on moto and the R6 throttle tube in my hand. They look identical outside)

    Unfortunately I did not take tech detail type pictures as I did not think I would ever post in a tech section somewhere but I thought this might be of interest to others here.

    I am pretty certain you can get a R6 throttle tube at the Yamaha dealer or at the big liter bike places in BKK. Its well worth the swap out

    nlGQypM.

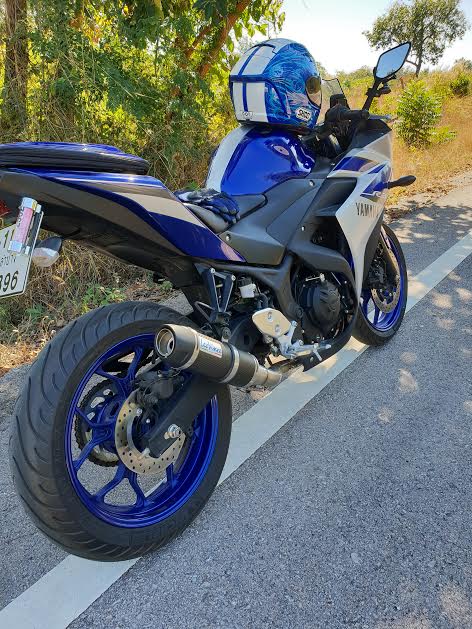

    Next up will be fab'ing a exhaust hangar lower to remove the higher factory one that is also the foot peg for the passenger. I have no intention of having a passenger on this moto. Its not designed for it so why not take them off and clean the moto up a bit.

    • Like Like x 2
  2. jimboy

    jimboy Ol'Timer

    Joined:
    Sep 28, 2010
    Messages:
    60
    Likes Received:
    13
    Trophy Points:
    8
    Gender:
    Male
    Ratings:
    +13 / 0 / -0

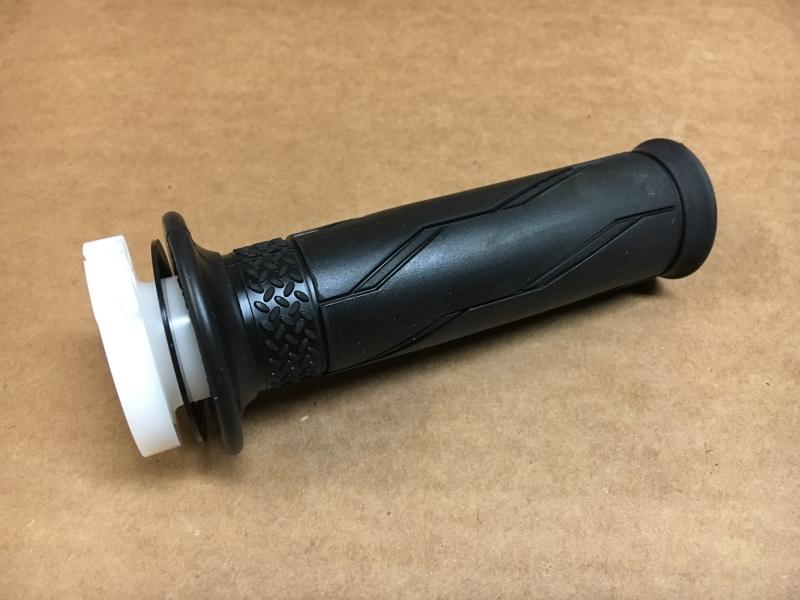

    R6 throttle tubes, known as "Yamaha GRIP ASSY Part # 5SL-26240-01-00" are available to order from Yamaha Square Kadsuankeaw. AFAIR, they were less than 500THB. The tubes fit all bikes with standard 22mm bars and give a 1/5 turn, and were designed for use with the pre-2009 Yamaha R6.

    FYI, the new R6 takes part 2C0-26240-00-00 and gives a 1/6 turn. In both cases the OEM part comes with a good quality rubber grip in addition to the Nylon grip tube. A worthwhile addition to any bike.

    R6_throttle.

    • Like Like x 1
