Classic Triumph clutch overhaul

Discussion in 'Touring Northern Thailand - Trip Reports Forum' started by ianyonok, Nov 5, 2009.

  1. ianyonok

    ianyonok Ol'Timer

    Joined:
    Dec 9, 2008
    Messages:
    820
    Likes Received:
    323
    Trophy Points:
    63
    Ratings:
    +323 / 0 / -0
    The clutch had been slipping on my ’71 Tiger for a while. However, a trip to Pu Chee Fah ended at Chiang Khong as the slipping was too bad to continue.

    Tigerclutchfailure-1.

    Back in the workshop….

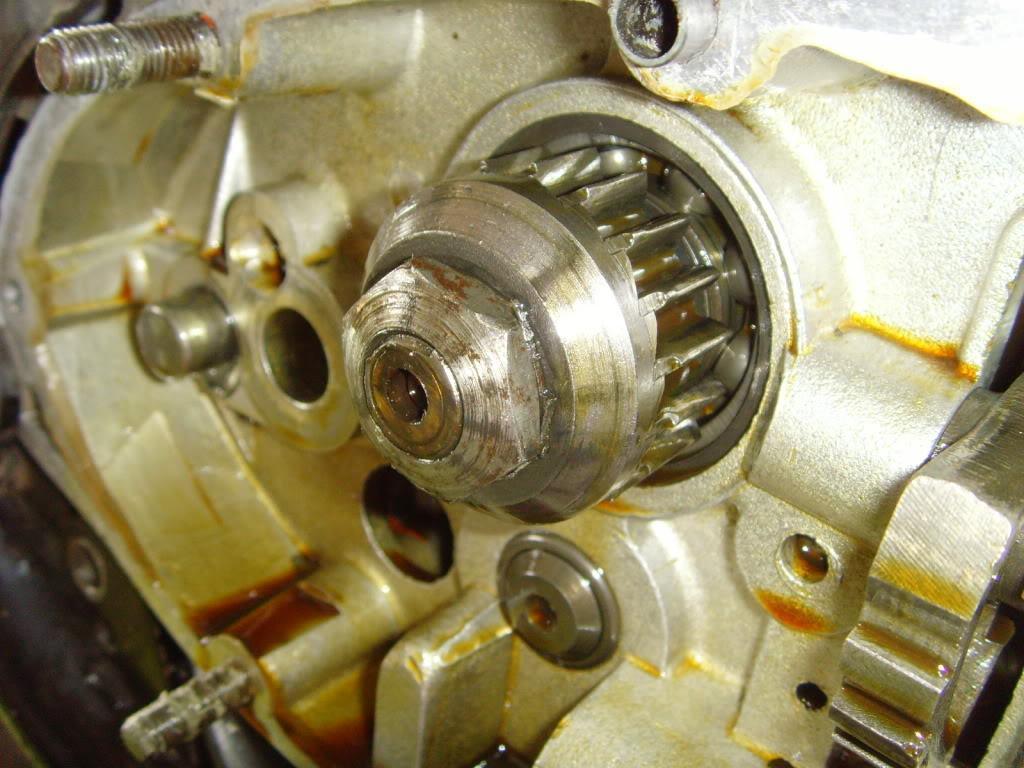

    The clutch drum was loose because the gearbox mainshaft tab washer had lost it’s tabs and the locking nut had unscrewed……

    Loosemainshaftnut.

    Brokentabwasher.

    New tab washer installed, gearbox cover back on, time to improve the primary drive side.

    While the chaincase cover was off, the 19 tooth gearbox sprocket was replaced with a 20 tooth item

    20toothgboxsprocketandHydecooler.

    and an uprated alternator went in for daylight running headlight.

    Newalternator.

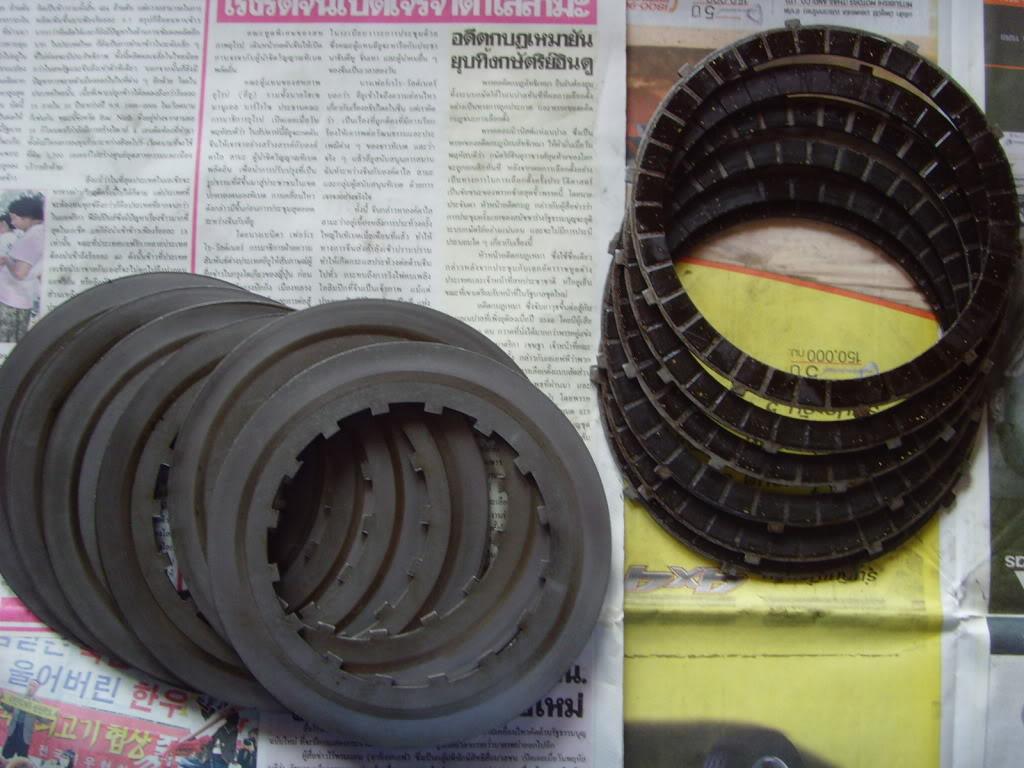

    Next, Norman Hyde reduced area friction plates

    newclutchplates.

    Out came the pressed steel pressure plate….

    Steelpressureplate.

    (footrest must have cracked the chaincase cover at some time in it’s life, but weld looks good on the outside).

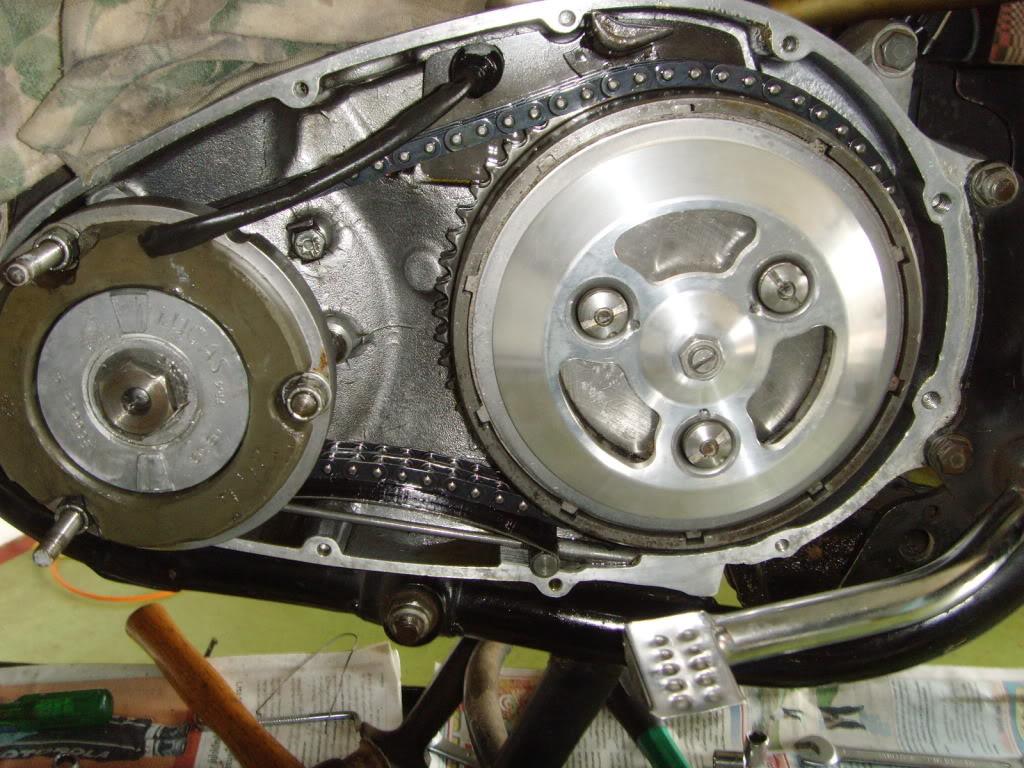

    Rebuiltwithnewalloypressureplate.

    … and in went the nice new alloy pressure plate, together with T140 springs, new cups and pressure nuts.

    gasketmaking.

    We used to use cornflakes boxes when I was a lad. I can afford gasket paper now!

    Hydetoiletbrushoilcooler3.

    A Hyde toilet brush oil cooler finished the work session off.

    Pu Chee Fah here we come....

    Ian
