KLX / D-Tracker Tsukigi Exhaust

oneton

Ol'Timer
Jan 22, 2007
50
0
6

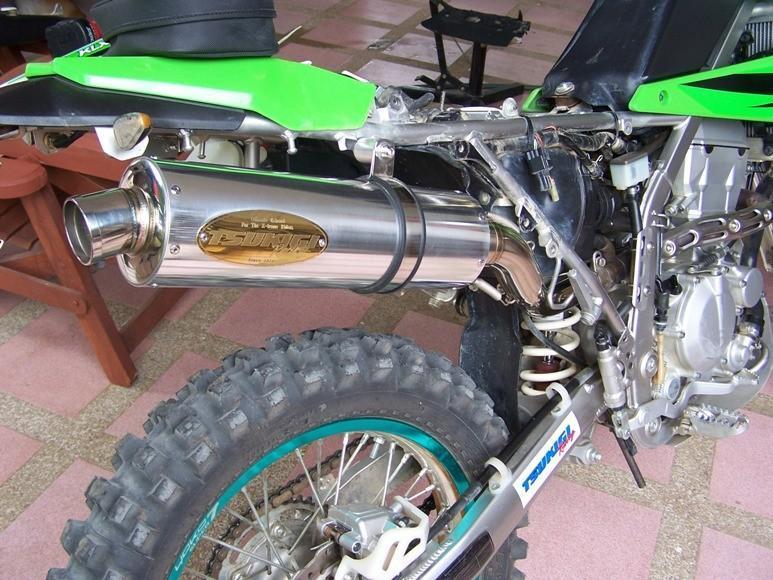

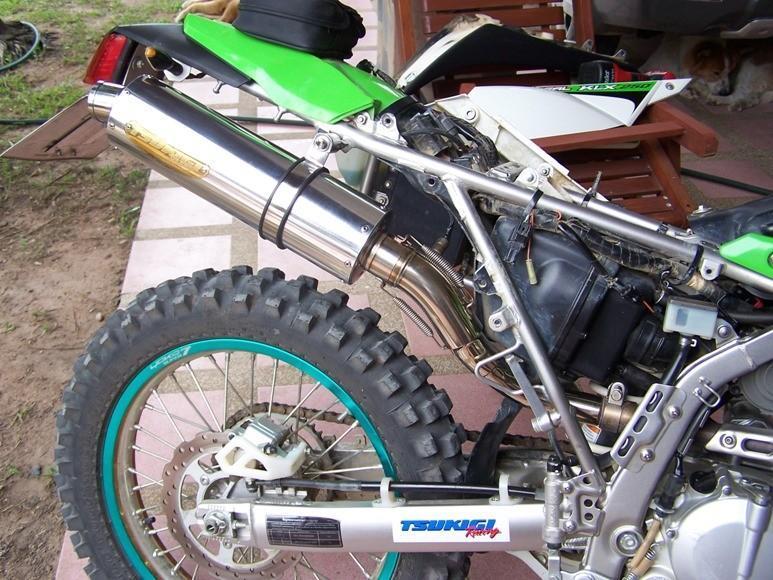

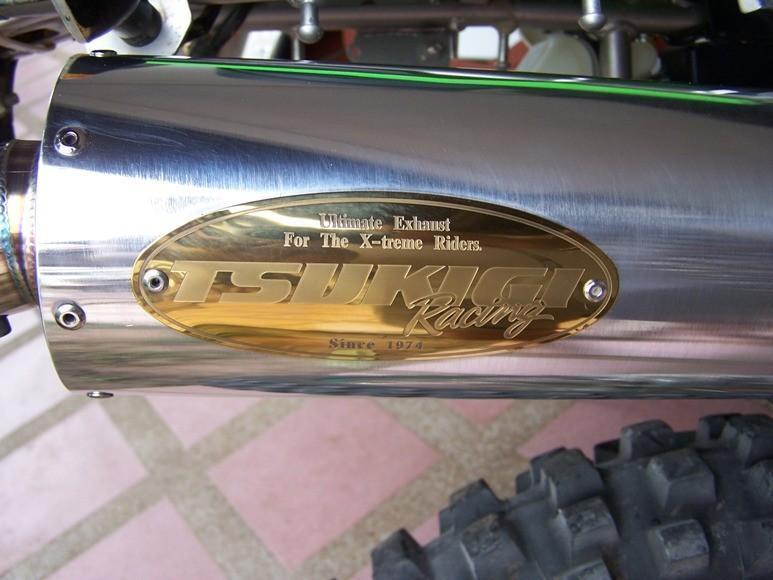

I bought this exhaust at Mityon Kawasaki Pattaya for the KLX. 3800 baht. It is purpose made as it has the thread for the oxygen sensor. Pretty much a straight through pipe and very noisy!! Alloy hence lighter than original. Includes muffler and pipe where oxygen sensor fits. Initial impressions after a quick blast is it improves performance at high revs. Nothing much in the low to mid. Mityon have one fitted to a D-tracker test bike. Mechanic suggested another model for 24000 baht (sorry don't remember brand). It was also straight through. Choice was a no brainer! Fitted it myself. Very easy.

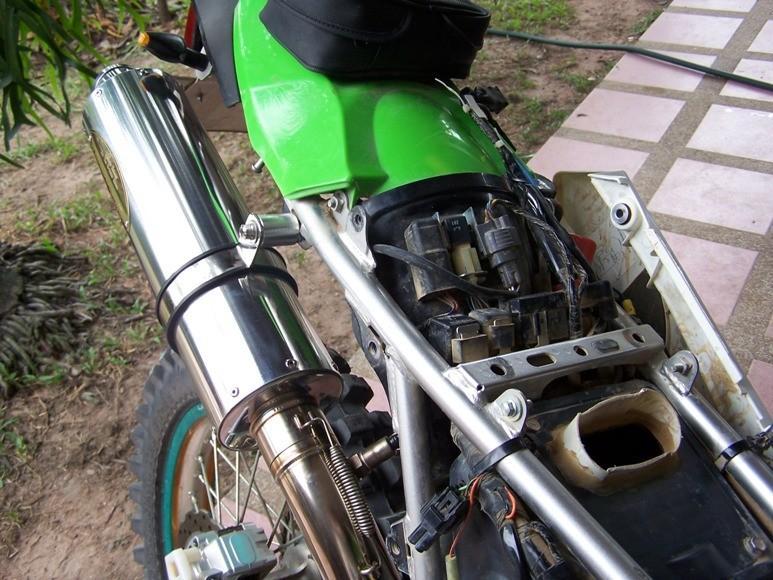

My bike has the 'free' rev limit mod, plus snorkel removed (see photos).

Cheers
Tony






thaicbr

Ol'Timer
Sep 22, 2008
199
0
0
Ummm. That looks like the same muffler that they Fit as atandard to the Tiger 250 rs. And yes it will give a good GGGRoooowl to the exhaust note.
Allan


Maha

Ol'Timer
Oct 7, 2009
67
7
8
My friend just got the same exhaust. Sounds pretty good, maybe a bit less loud than my two brother (with P4 tip). And definately much cheaper!

But one thing to note in this one is the location of the O2 sensor adaptor: the sensor is in very vulnerable position in top of the rear wheel. Stones, dirt & water flying of the wheel will easily hit and damage the sensor. So it requires some sort of protection or the whole adapter should be re-located to somewhere else (about 1000thb job in local machine shop).


rexnong

Ol'Timer
Jun 18, 2009
46
0
0
Hi I have the same pipe and its better than another pipe i also bought (oval type) although i get it backfiring when cold although this goes after a few km
Where did you get the back light/plate mod from as the standard licence holder is terrible
How much was it .
Cheers


oneton

Ol'Timer
Jan 22, 2007
50
0
6
I made it myself - I found the sheet aluminum at a scrap dealer. I used the same material to make a bash plate. I would recommend 3 or 4 (mm) material instead of the 2 (mm) I used.

I reckon there are some off the shelf products available -advise anybody......?

Cheers
Tony


rexnong

Ol'Timer
Jun 18, 2009
46
0
0
Thanks for the quick reply tony ,what back light did you use ?
also does it run much better when you take the snorkel(air box off)?
cheers Rex


oneton

Ol'Timer
Jan 22, 2007
50
0
6
Back light is standard ....
Regarding air box. This was the first mod I made performance wise and it makes an immediate difference. I believe you can replace the snorkel with a KDX 250 part which is larger. There is a thread on this forum about it somewhere... I am looking at getting a K&N air filter for better flow. Saying that the original seems to perform OK.

If you are riding off road, I noticed the aftermarket nobbly tyres have a larger diameter than the originals. I have ordered a 13T front sprocket to counter this (Original is 14T).

Tony


oneton

Ol'Timer
Jan 22, 2007
50
0
6
Indicators are LED from Mityon Kawasaki Pattaya. Advise you take the lens off and seal it with silicon.
