Shock spring compressor tool

Discussion in 'Technical & Motorcycle Services' started by trevbart, Jun 18, 2009.

  1. trevbart

    trevbart Ol'Timer

    Joined:
    Oct 20, 2003
    Messages:
    56
    Likes Received:
    0
    Trophy Points:
    0
    Ratings:
    +0 / 0 / -0
    I need to make a adjustment to my shock...

    Does anyone know where I can find a spring compressor tool to suit an Ohlins rear shock in Chiang Mai?

    Cheers!

  2. DavidFL

    DavidFL Administrator
    Staff Member

    Joined:
    Jan 16, 2003
    Messages:
    10,906
    Likes Received:
    861
    Trophy Points:
    113
    Gender:
    Male
    Ratings:
    +861 / 0 / -0
    Trevbart

    There's suposed to be a shock rebuild shop in Nong Hoi somewhere. They might have something that will work.

    I'm not sure if this is the shop or not, but you could try this one

    https://www.gt-rider.com/thailand-motorc ... html#18576

    Pang Shop near the Gymkhana Club.
    Suchat Kultipun Tel#: 081-5951143.

  3. trevbart

    trevbart Ol'Timer

    Joined:
    Oct 20, 2003
    Messages:
    56
    Likes Received:
    0
    Trophy Points:
    0
    Ratings:
    +0 / 0 / -0
    Thanks David,

    I will try them when I get back. Also I'm planning to build a spring compressor tool while here at work...

    Anyone there that can tell me the diameter of the spring keeper on a Ohlins shock? I think it's about 75mm but I would like the exact figure...

    Cheers

  4. DavidFL

    DavidFL Administrator
    Staff Member

    Joined:
    Jan 16, 2003
    Messages:
    10,906
    Likes Received:
    861
    Trophy Points:
    113
    Gender:
    Male
    Ratings:
    +861 / 0 / -0
    Bob
    How did you go - were you able to build the spring compressor tool at work?

  5. trevbart

    trevbart Ol'Timer

    Joined:
    Oct 20, 2003
    Messages:
    56
    Likes Received:
    0
    Trophy Points:
    0
    Ratings:
    +0 / 0 / -0

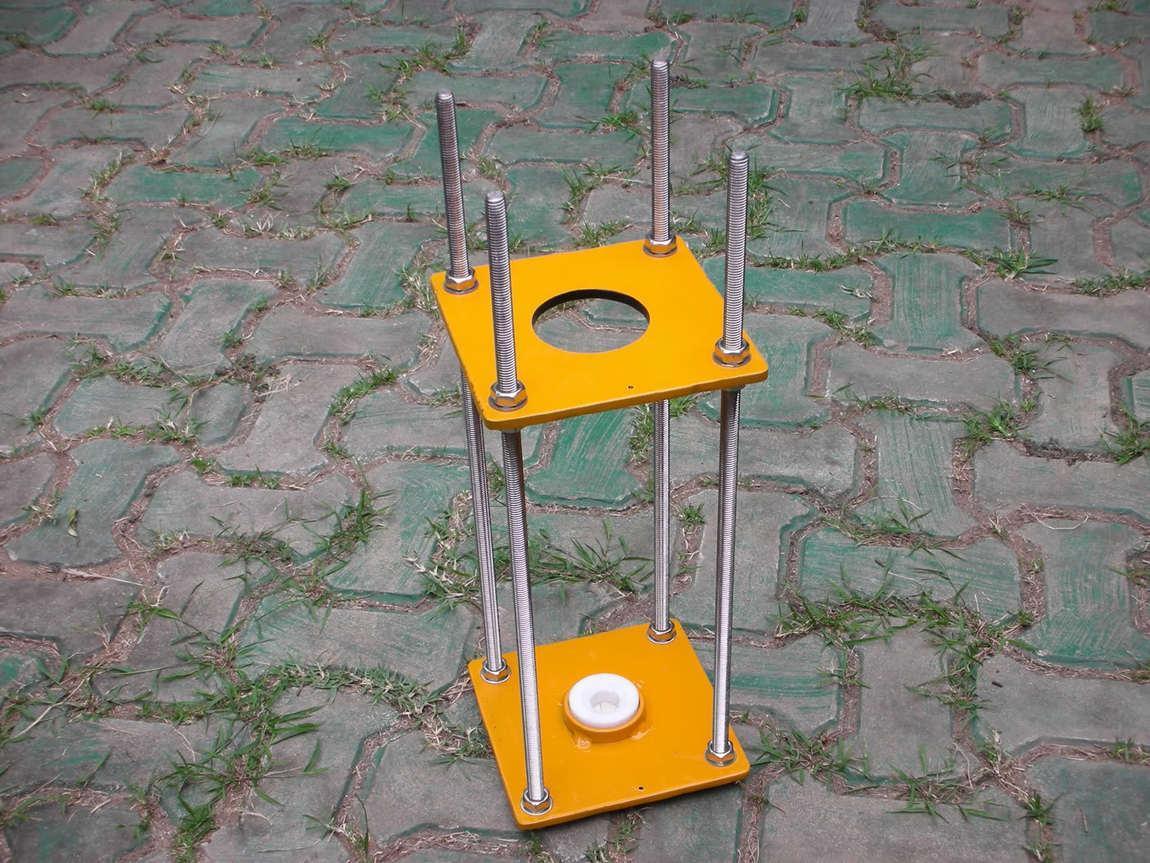

    yes, made one at work. 200 Baht for the 12mm threaded rod and nuts. 1/4 inch steel plates cut from scrap. BTW Ohlins spring keeper is 71.5mm so hole is 72mm, welded a ring to the lower plate to stop shock from sliding out. (there is a LOT of tension when you compress the spring!)

    Works fine, just a little slow winding the nuts up/down but thats not a problem .
    cheers!
    DSCN0817.
